Boltaron® Thermoplastics for Radomes

Boltaron®4550 is SIMONA Boltaron’s UV and weather resistant grade for exterior thermoforming applications.

4550 sheet is capped with a clear UV resistant acrylic film, offering long term durability and quality appearance for applications that see prolonged sun exposure. In radome applications, this material minimally attenuates the electromagnetic signal transmitted or received by the antenna with a low dielectric constant and dissipation factor.

LOW WATER ABSORPTION AND EXTENDED DURABILITY

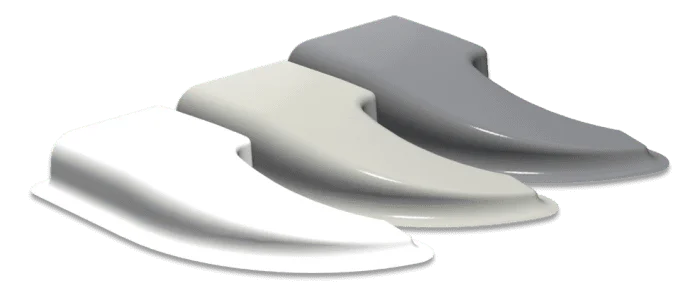

SIMONABOL_4550_Radomes_Radome CommasWhy choose Boltaron thermoplastics for radome applications? Boltaron materials are hydrophobic, meaning they have very low water absorption and perform well in rainy and wet environments. These materials have great impact strength compared to other thermoformable plastics, so they will hold up in extreme temperatures without cracking or breaking.

Custom colors can also be produced to blend in with surrounding areas. Boltaron sheet is easy to thermoform to almost any shape and still maintain high definition. Boltaron 4550 also meets UL standard 94 V-0 flammability resistance.

Boltaron 4550 Advantages

  • UV resistance and weatherability
  • Low water absorption
  • Available in any color
  • No need to paint
  • Outlasts low grade thermoplastics
  • Low dissipation factor
  • Low dielectric constant
  • High strength and modulus
  • High impact resistance

WHAT IS A RADOME?

A radome is a dome or other structure, weatherproof enclosure protecting radar equipment. The radome is constructed of material that minimally interferes with the electromagnetic signal transmitted or received by the antenna, effectively transparent to radio waves.

Radomes are used in ground, air and sea applications, so they are required to have UV and water resistance with excellent performance in outdoor environments. As spending increases on high speed wireless internet and 5G in rural areas around the world, the global radome market space is expected to grow at a huge rage by 2027.

  • Ground – towers, vehicles, air defense
  • Air – commercial, military aircraft, UAV’s , general aviation
  • Sea – commercial ships, military, private boats
Communication antennas with navigation equipment

Where are new radomes being used?

  • New aircraft
  • Fleet vehicle replacements
  • Ground applications
  • Marine applications
  • Military upgrades

SHEET SPECIFICATIONS

SIMONABOL_4550_Radomes_Radome commas-gray
SIMONABOL_4550_Radomes_Radome Bookmarks-gray

SHEET SIZES

  • Lengths to 120 in (3,048 mm)
  • Widths to 52 in (1,321 mm)
  • Gauges 0.04 in to 0.25 in (1.0 to 6.35 mm)

ELECTRICAL PROPERTIES

  • Dielectric constant changes from 2.91 at 2.5 GHz to 2.93 at 18 GHz and 2.92 at 39 GHz
  • Loss tangent is also low, from .002 at 2.5 GHz, .008 at 18 GHz, and .010 at 39 GHz

CHARACTERISTICS

  • High gloss acrylic film
  • Excellent UV resistance
  • Hydroscopic
  • Low dielectric constant
  • Meets UL standard 94 V-0 flammability resistance
  • High impact
  • Abrasion and chemical resistant
  • Thermoformable
  • Unlimited colors

For Samples or Sheet Pricing

Please fill out this form and one of our sales team members will reach out to you direcly.
